Product features:

LH type electric hoist bridge crane. With the features of compact size, low building headroom, light weight, small wheel pressure etc.. Applied to mechanical processing plant, metallurgical plant, warehouse, yard and power station transport, assembly, maintenance and handling operations; it can also replace the ordinary double beam bridge crane, used in the textile industry and food industry production workshop. Its work type is light and intermediate, working environment temperature is -25 C ~40 C, prohibit in flammable, corrosive medium environment use.

This product is equipped with two forms of ground and control room operation. Operating room is open, closed two. According to the actual situation can be installed into two forms of left or right. Introduction to the direction of the side, end face, the top three. To meet the user in different situations to choose.

Product features:

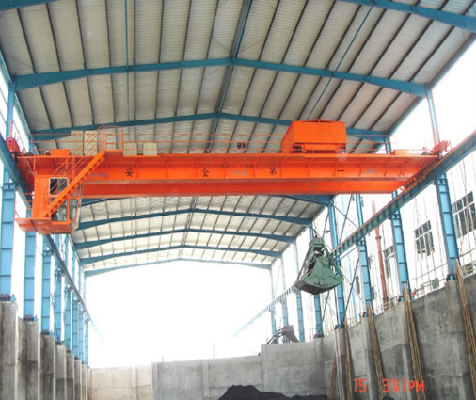

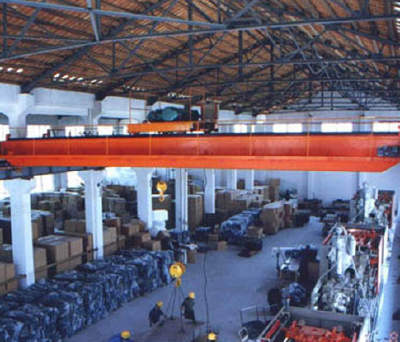

LH type electric hoist electric hoist double girder crane is configured to hoist the car, placed in the top two main girder trolley track girder, using H steel or box girder, trolley traveling mechanism of the "three in one" transmission mechanism, hoist double girder stability, light weight, small volume, simple structure, convenient installation use and maintenance, in the space under the same conditions, a single girder crane with high lifting height, suitable for various materials of each plant handling
